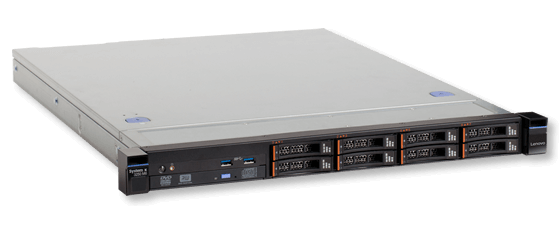

SERVER LENOVO System x3250 M6 E3-1220 v5 3.0GHz


Số lượng:
Giá bán: 0 VND

SERVER LENOVO System x3250 M6 E3-1220 v5 3.0GHz CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI THẾ GIỚI SỐ

  •     Intel Xeon Processor E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W)
  •     4GB  PC4-17000 DDR4 2133MHz LP ECC UDIMM
  •     Hard Drive : None (2.5")
  •     ServeRAID M1210 SAS/SATA 12 Gbps Controller (RAID 0, 1, 10 )
  •     2x Integrated Gigabit Ethernet 1000BASE-T ports
  •     Unified Extensible Firmware (UEFI), Integrated Management Module II (IMM2.1)
  •     4 x 2.5" hot-swap SAS/SATA drive bays
  •     Power Supply 300 W AC
  •     Rack (1U), Rail Kit
  •     Warranty:  3 Year Onsite Repair 24x7 4 Hour Response

KEY FEATURES MÁY CHỦ SERVER LENOVO System x3250 M6 E3-1220 v5 3.0GHz

Components Specification
Form factor 1U rack-mount
Processor One processor:
  • Intel Xeon processor E3-1200 v5 product family with four cores up to 3.7 GHz, 8 MB cache, and 2133 MHz memory speed; or
  • Intel Core i3 processor 6100/6300 product families with two cores up to 3.9 GHz, up to 4 MB cache, and 2133 MHz memory speed; or
  • Intel Pentium processor G4400/G4500 product families with two cores up to 3.6 GHz, 3 MB cache, and 2133 MHz memory speed; or
  • Intel Celeron Processor G3900 product family with two cores up to 2.9 GHz, 2 MB cache, and 1866 MHz memory speed.
Chipset Intel C232.
Memory Four DIMM sockets. Support for ECC UDIMMs. Memory speeds up to 2133 MHz.
Memory capacity

Up to 64 GB with 4x 16 GB UDIMMs

Memory protection Error correction code (ECC).
Drive bays
  • Up to 8x 2.5" SAS/SATA hot-swap drive bays
  • 4x 3.5" SAS/SATA hot-swap drive bays
  • Up to 8x 2.5" SATA Simple Swap drive bays
  • 4x 3.5" SATA Simple Swap drive bays
Drive types 2.5-inch drives:
  • 12 Gb SAS HDDs up to 1.8 TB
  • 12 Gb Nearline (NL) SAS HDDs up to 2 TB
  • 6 Gb NL SATA HDDs up to 2 TB
  • 6 Gb SATA SSDs up to 1.6 TB
3.5-inch drives:
  • 12 Gb NL SAS HDDs up to 8 TB
  • 6 Gb NL SATA HDDs up to 8 TB
  • 6 Gb SATA SSDs up to 1.6 TB
Intermix of SAS and SATA HDDs and SSDs is supported within a system, but not within a RAID array.
Internal storage capacity
  • Up to 32 TB with 8 TB 3.5" NL SAS or NL SATA HDDs
  • Up to 16 TB with 2 TB 2.5" NL SAS or NL SATA HDDs
  • Up to 14.4 TB with 1.8 TB 2.5" SAS HDDs
  • Up to 12.8 TB with 1.6 TB 2.5" SATA SSDs
Storage controller
  • 6 Gb SATA RAID: RAID 0, 1, 10, 5 with C110.
  • 12 Gb SAS/6 Gb SATA RAID: RAID 0, 1, 10 with M1210, M1215, or M5210.
    Optional upgrade to RAID 5, 50 is available for M1210, M1215.
    Optional upgrade to RAID 5, 50 is available for M5210 (zero-cache; 1 GB non-backed cache; 1 GB, 2 GB, or 4 GB flash-backed cache).
    Optional upgrade to RAID 6, 60 is available for M5210 (requires a cache upgrade).
    Optional SSD Caching and Performance Accelerator upgrades are available for M5210.
  • 12 Gb SAS/6 Gb SATA non-RAID: N2215 HBA.
Optical drive bays One. Support for DVD-ROM or Multiburner.
Backup drive bays None. Support for an external backup unit.
Network interfaces 2x Integrated Gigabit Ethernet 1000BASE-T ports (RJ-45 with the onboard Intel I350-AM2 controller; one port is configured as a dedicated or shared network/systems management port.
I/O expansion slots Two PCIe slots:
  • Slot 1: PCIe 3.0 x8 (x4-wired); custom low profile, dedicated for the M1210 controller.
  • Slot 2: PCIe 3.0 x8 (x8-wired); full-height, half-length.
Ports
  • Front: 2x USB 3.0 ports.
  • Rear: 2x USB 3.0 and 1x DB-15 VGA ports. Optional 1x DB-9 serial port.
  • Internal: 1x USB 3.0 port (for embedded hypervisor).
Cooling Calibrated Vectored Cooling with four non-hot-swap system fans.
Power supply One 300 W AC (100 - 240 V) fixed power supply (80 PLUS Gold); or up to two redundant hot-swap 460 W AC (100 - 240 V) power supplies (80 PLUS Gold, Energy Star 2.0).
Hot-swap parts Hard drives (select models) and power supplies (select models).
Systems management Unified Extensible Firmware Interface (UEFI), Integrated Management Module II (IMM2.1) based on Renesas SH7758, Predictive Failure Analysis, system LEDs, Automatic Server Restart, ToolsCenter, and Lenovo XClarity Administrator. Optional IMM Advanced Upgrade for remote presence (graphics, keyboard and mouse, virtual media).
Security features Power-on password, administrator's password, Trusted Platform Module (TPM) 2.0 (hardware) / 1.2 (firmware). Optional lockable front bezel.
Video Matrox G200eR2 with 16 MB memory integrated into the IMM2.1. Maximum resolution is 1600x1200 at 75 Hz with 16 M colors.
Operating systems Microsoft Windows Server 2012, 2012 R2, and 2016; Red Hat Enterprise Linux 6 (x64) and 7, SUSE Linux Enterprise Server 11 (x64) and 12, VMware vSphere (ESXi) 5.5, 6.0, and 6.5.
Warranty Three-year (Machine Type 3633) or one-year (Machine Type 3943) customer-replaceable unit and onsite limited warranty with 9x5/Next Business Day.
Service and support Optional service upgrades are available through the Lenovo Services: 4-hour or 2-hour response time, 8 hours fix time, one-year or two-year warranty extension, remote technical support for System x hardware and selected System x and third-party (Microsoft, Linux, VMware) software.
Dimensions Height: 43 mm (1.7 in), width: 435 mm (17.1 in), depth: 576 mm (22.7 in)
Weight Minimum: 8.6 kg (19.0 lb), maximum: 13.7 kg (30.1 lb)
