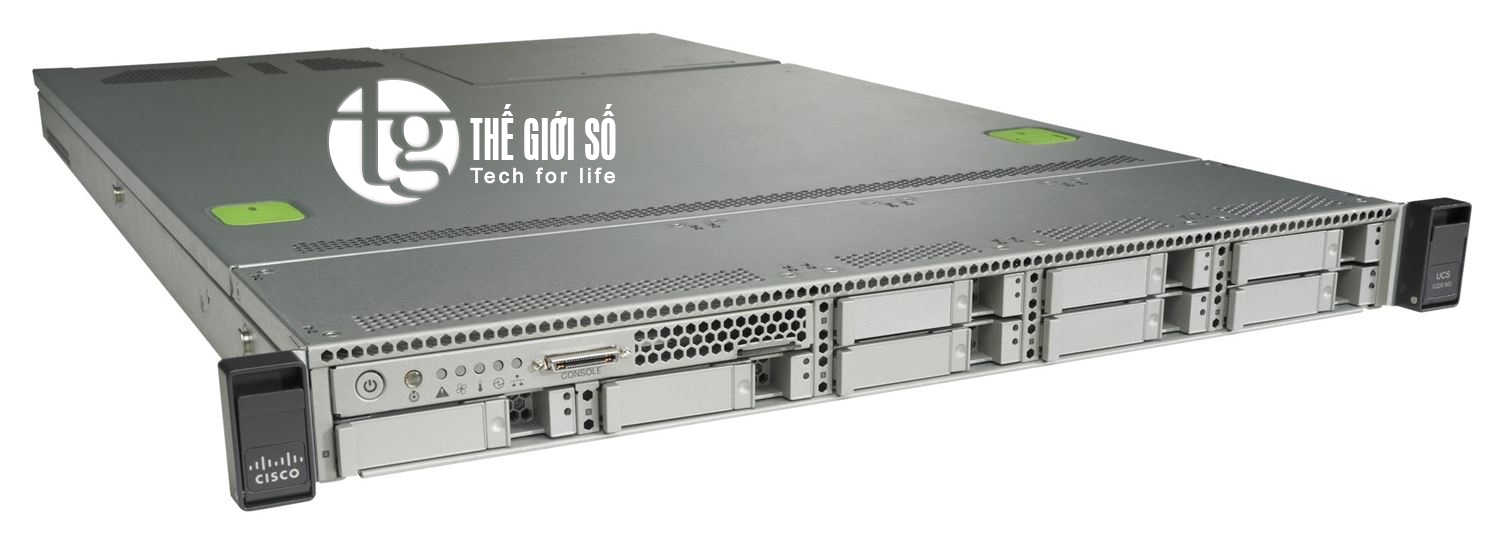

SERVER CISCO UCS C220 M3 E5 2609 2.4GHZ


Số lượng:
Giá bán: 0 VND

SERVER CISCO UCS C220 M3 E5 2609 2.4GHZ CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI THẾ GIỚI SỐ

KEY FEATURES MÁY CHỦ SERVER CISCO UCS C220 M3 E5 2609 2.4GHz

 * 1x Intel® Xeon® Sandy Bridge-EP 4-Core Processor E5-2609, 2.4GHz, 10MB, LGA2011
 * 1x 8GB DDR3 1333 240-Pin DDR3 ECC RDIMMs/UDIMMs (PC3 10666)
 * NON HDD
 * Embedded SW RAID 0/1/10/5 8 ports SAS/SATA
 * 1x Integrated Dual-port Gigabit Ethernet (2port)
 * 1x Power supply 650Watts

MÁY CHỦ SERVER CISCO UCS C220 M3 E5 2609 2.4GHz

Product Specifications

Item

Specification

Processors

• 1 or 2 Intel Xeon processor E5-2600 product family
• Choice of processors: Intel Xeon E5-2690, E5-2680, E5-2665, E5-2660, E5-2650, E5-2640, E5-2630, E5-2620, E5-2609, E5-2643, E5-2650L,or E5-2630L

Memory

• 16 DIMM slots
• Support for DDR3 registered DIMMs
• Support for DDR3 low-voltage DIMMs
• Advanced error-correcting code (ECC)
• Mirroring option

PCIe slots

• 2 PCIe Generation 3.0 slots available
• I/O performance and flexibility with one x8 half-height and half-length slot, and one x16 full-height and half-length slot

RAID Card

* LSI MegaRAID SAS9266-8i with SuperCap Power Module (RAID backup unit) (RAID 0, 1, 5, 6, 10, 50, or 60)
* Cisco UCS RAID SAS 2008M-8i Mezzanine Card (RAID 0, 1, 5, 10, 50)
* Embedded SW RAID 0/1/10/5 8 ports SAS/SATA

Hard drives

Up to 8 front-accessible, hot-swappable, 2.5-inch SAS, SATA or SSD or up to 4 front-accessible, hot-swappable, 3.5-inch SAS, SATA drives

Hard disk options

2.5-inch drive options:

• 300-GB SAS; 6G, 10,000 RPM
• 300-GB SAS; 6G,15,000 RPM
• 500-GB SATA; 7200 RPM
• 600-GB SAS; 10,000 RPM
• 900-GB SAS; 10,000 RPM
• 1-TB SATA; 7200 RPM
• 100-GB SATA SSD
• 200-GB SATA SSD
• 300-GB SATA SSD

3.5-inch drive options:

• 300GB SAS 15,000 RPM
• 450GB SAS 15,000 RPM
• 500GB SATA 7,200 RPM
• 600GB SAS 15,000 RPM
• 1TB SAS 7,200 RPM
• 2TB SAS 7,200 RPM
• 3TB SAS 7,200 RPM

Cisco Flexible Flash (FlexFlash)

• The server supports one internal 16GB Cisco FlexFlash drive (SD card)
• The SD card is preloaded with four virtual drives. The four virtual drives contain, respectively, the Cisco server Configuration Utility, the Cisco Host Upgrade Utility, the Cisco C-Series server drivers set, and a blank virtual drive on which you can install an OS or a hypervisor

Internal USB

The server supports one internal USB flash drive

Cisco UCS Integrated Management Controller

• Integrated Emulex Pilot-3 Baseboard Management Controller (BMC)
• IPMI 2.0 compliant for management and control
• One 10/100/1000 Ethernet out-of-band management interface
• CLI and WebGUI management tool for automated, lights-out management
• KVM

Front-panel connector

One KVM console connector (supplies 2 USB, 1 VGA, and 1 serial connector)

Front-panel locator LED

Indicator to help direct administrators to specific server in large data center environments

Additional rear connectors

Additional interfaces including a VGA video port, 2 USB 2.0 ports, an RJ45 serial port, 1 Gigabit Ethernet management port, and dual 1 Gigabit Ethernet ports

Physical dimensions (H x W x D)

1RU: 1.7 x 16.9 x 28.5 in. (4.32 x 43 x 72.4 cm)

Temperature: Operating

32 to 104°F (0 to 40°C) (operating, sea level, no fan fail, no CPU throttling, turbo mode)

Temperature: Nonoperating

-40 to 158°F (-40 to 70°C)

Humidity: Operating

10 to 90% noncondensing

Humidity Nonoperating

5 to 93% noncondensing

Altitude: Operating

0 to 10,000 ft (0 to 3000m); maximum ambient temperature decreases by 1°C per 300m)

Altitude: Nonoperating

0 to 40,000 ft (12,000m)
