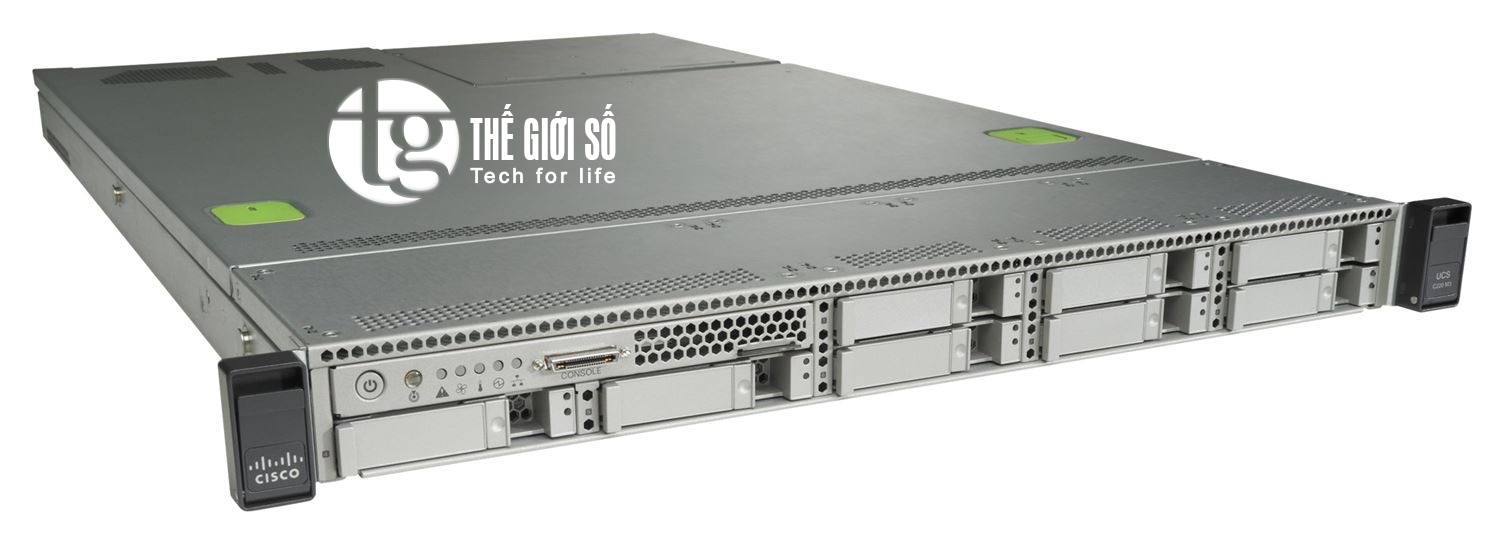

SERVER CISCO UCS C220 M3 E5-2620 V2, 2.1GHz, 15MB, 7.20GT/s QPI


Số lượng:
Giá bán: 0 VND

SERVER CISCO UCS C220 M3 E5-2620 V2 CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI THẾ GIỚI SỐ

KEY FEATURES MÁY CHỦ SERVER CISCO UCS C220 M3 E5-2620 v2

 * 1x Intel® Xeon® 6-Core Processor E5-2620 v2, 2.1GHz, 15MB, 7.20GT/s QPI
 * 1x 8GB DDR3 1333 240-Pin DDR3 ECC RDIMMs/UDIMMs (PC3 10666)
 * Non x 8 HDD SSD/SATA/SAS Enterprise 2.5"
 * Embedded SW RAID 0/1/10/5 8 ports SAS/SATA
 * 1x Integrated Dual-port Gigabit Ethernet (2port)
 * 1x Power supply 650Watts

MÁY CHỦ SERVER CISCO UCS C220 M3 E5-2620 v2

Item

Specification



Processors

• 1 or 2 Intel Xeon processor E5-2600 or E5-2600 v2 product families
• For a complete list of processor options, please refer to the LFF SpecSheet or SFF SpecSheet





Memory

• 16 DIMM slots
• Support for DDR3 registered DIMMs
• Support for DDR3 low-voltage DIMMs
• Advanced error-correcting code (ECC)

• Mirroring option

PCIe slots

• 2 PCIe Generation 3.0 slots available
• I/O performance and flexibility with one x8 half-height and half-length slot, and one x16 full-height and half-length slot

RAID Card

• For a complete list of RAID options, please refer to the corresponding SFF SpecSheet or LFF SpecSheet

Hard drives

Up to 8 front-accessible, hot-swappable, 2.5-inch SAS, SATA or SSD or up to 4 front-accessible, hot-swappable, 3.5-inch SAS, SATA drives


Hard disk options

2.5 inch "SFF" drive options:

• For a complete list of drive options, please refer to the SpecSheet

3.5 inch "LFF" drive options:

• For a complete list of drive options, please refer to the SpecSheet

Cisco Flexible Flash (FlexFlash)

• The server supports up to two internal 16GB Cisco FlexFlash drives (SD cards)
• The first SD card is preloaded with four virtual drives. The four virtual drives contain, respectively, the Cisco Server Configuration Utility, the Cisco Host Upgrade Utility, the Cisco C-Series server drivers set, and a blank virtual drive on which you can install an OS or a hypervisor. The second SD card is blank and can be used to mirror the first.

Internal USB

The server supports one internal USB flash drive


Cisco UCS Integrated Management Controller

• Integrated Emulex Pilot-3 Baseboard Management Controller (BMC)
• IPMI 2.0 compliant for management and control
• One 10/100/1000 Ethernet out-of-band management interface
• CLI and WebGUI management tool for automated, lights-out management
• KVM

Front-panel connector

One KVM console connector (supplies 2 USB, 1 VGA, and 1 serial connector)

Front-panel locator LED

Indicator to help direct administrators to specific servers in large data center environments

Additional rear connectors

Additional interfaces including a VGA video port, 2 USB 2.0 ports, an RJ45 serial port, 1 Gigabit Ethernet management port, and dual 1 Gigabit Ethernet ports

Physical dimensions
(H x W x D)

1RU: 1.7 x 16.9 x 28.5 in. (4.32 x 43 x 72.4 cm)

Temperature: Operating

32 to 104°F (0 to 40°C) (operating, sea level, no fan fail, no CPU throttling, turbo mode)

Temperature: Nonoperating

-40 to 158°F (-40 to 70°C)

Humidity: Operating

10 to 90% noncondensing

Humidity Nonoperating

5 to 93% noncondensing

Altitude: Operating

0 to 10,000 ft (0 to 3000m); maximum ambient temperature decreases by 1°C per 300m)

Altitude: Nonoperating

0 to 40,000 ft (12,000m)
